RS PRESS-FIT FAMILY
Inarca PRESS-FIT Family: a complete range of IDC terminals for connecting both copper and aluminum magnet wires.

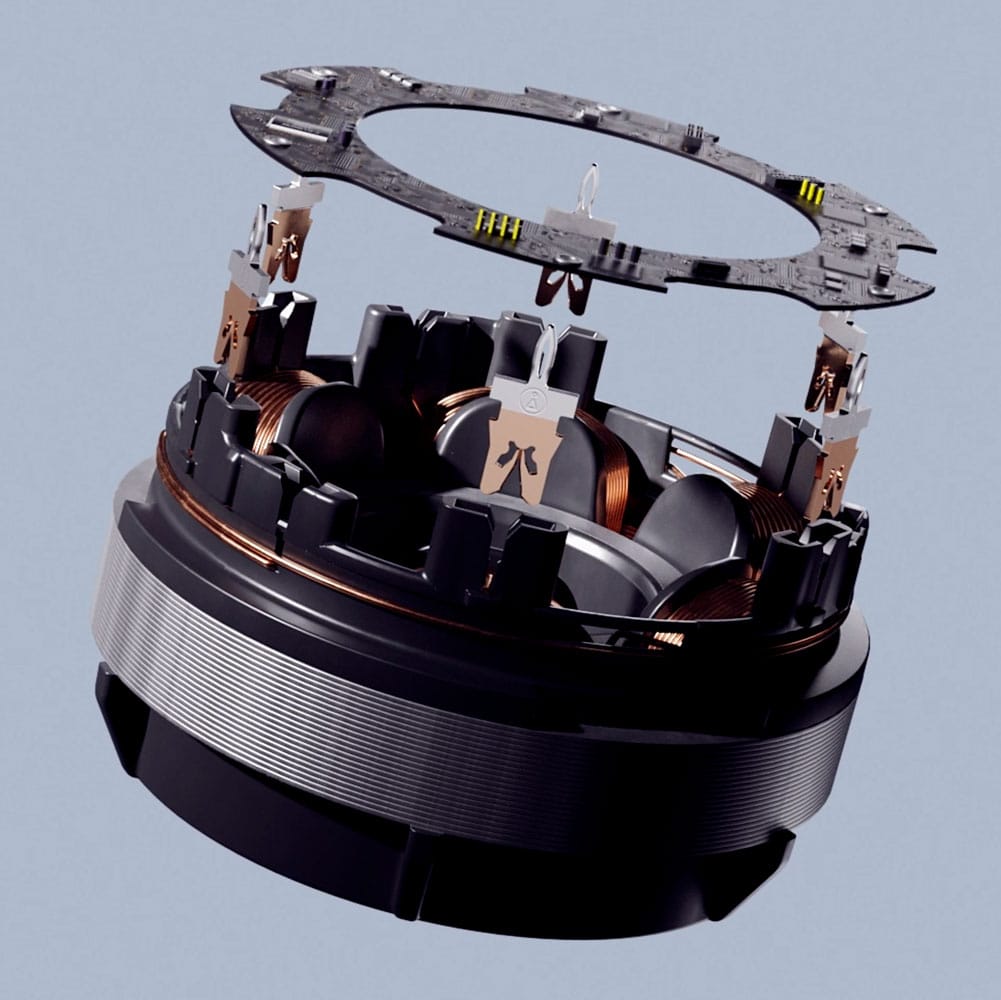

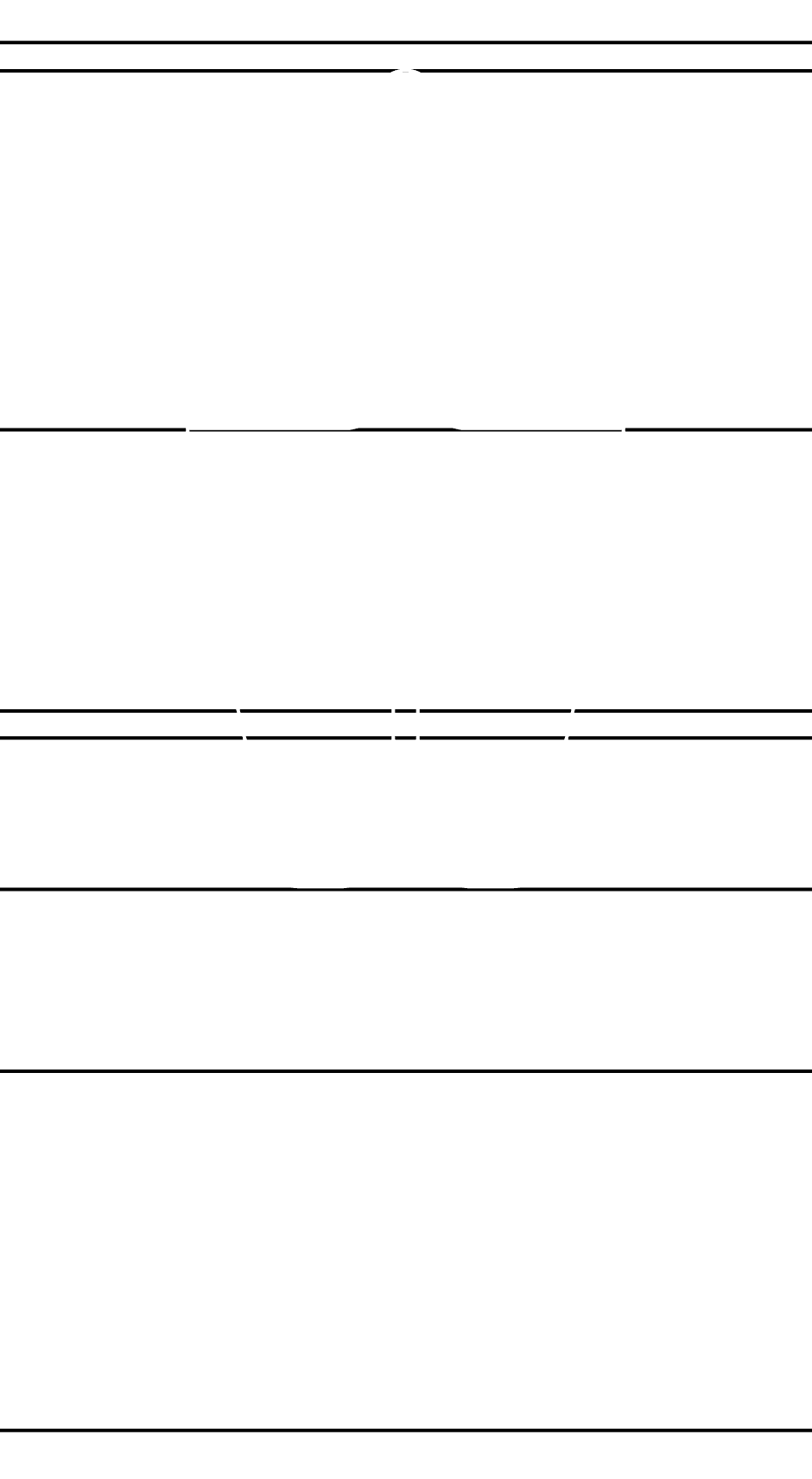

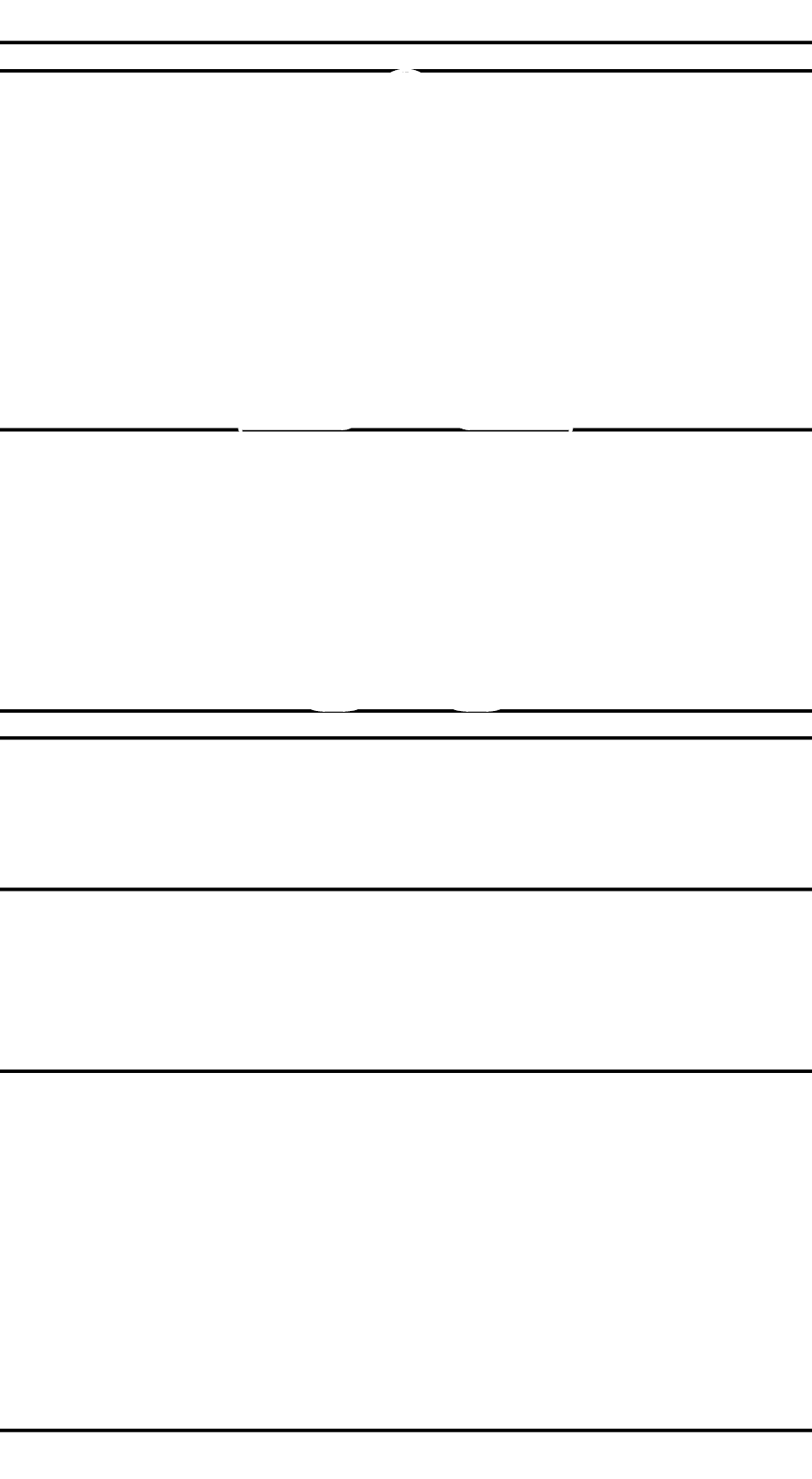

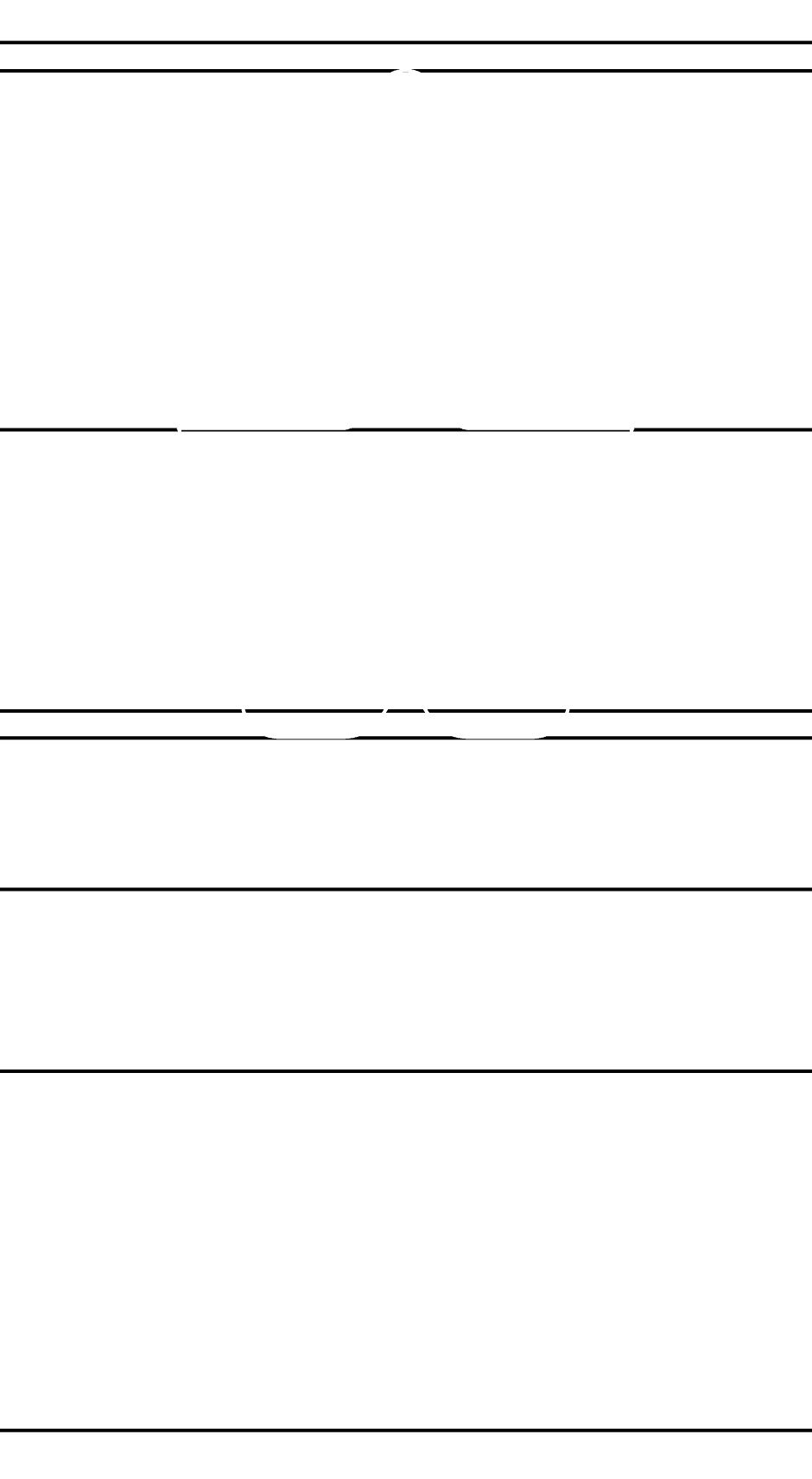

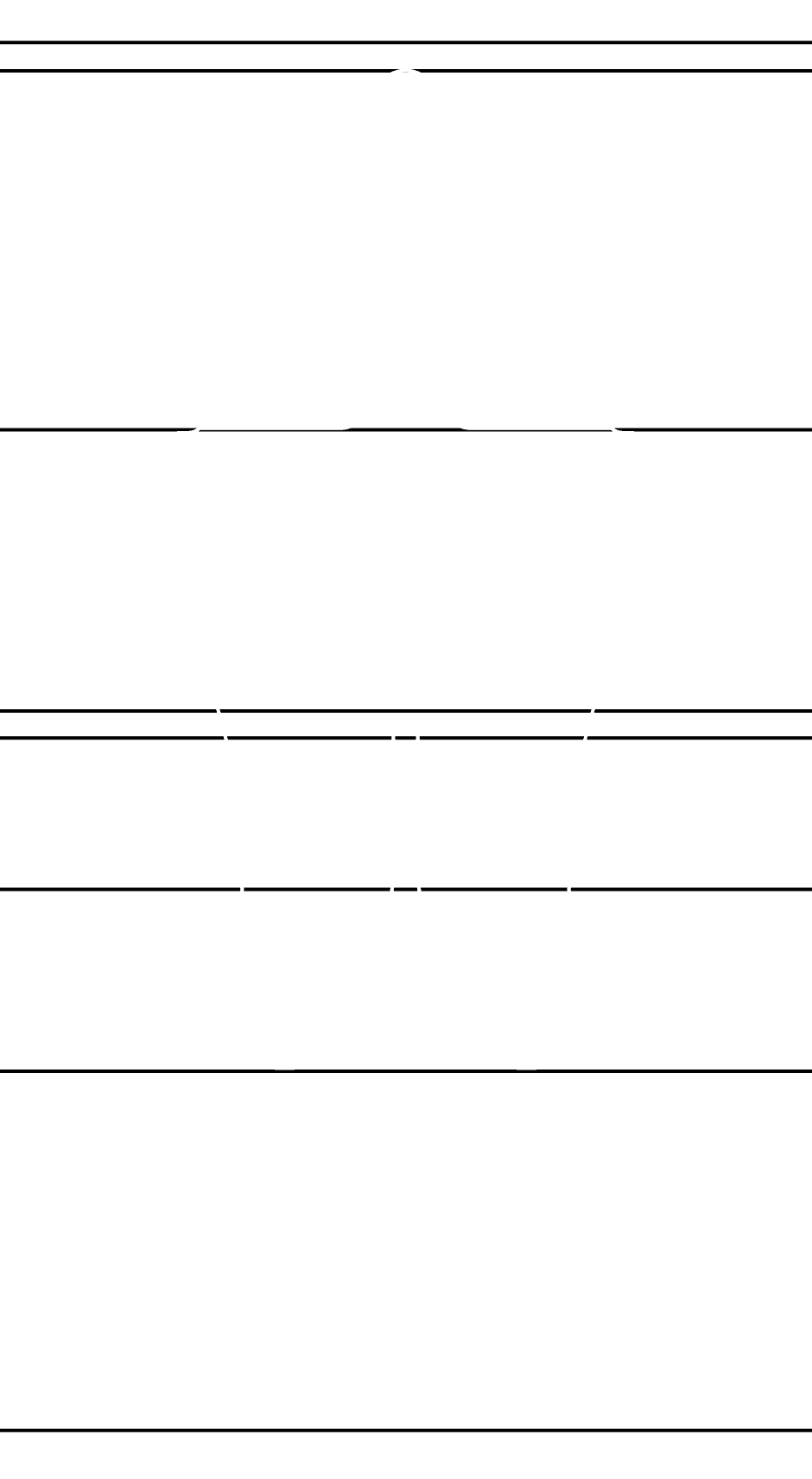

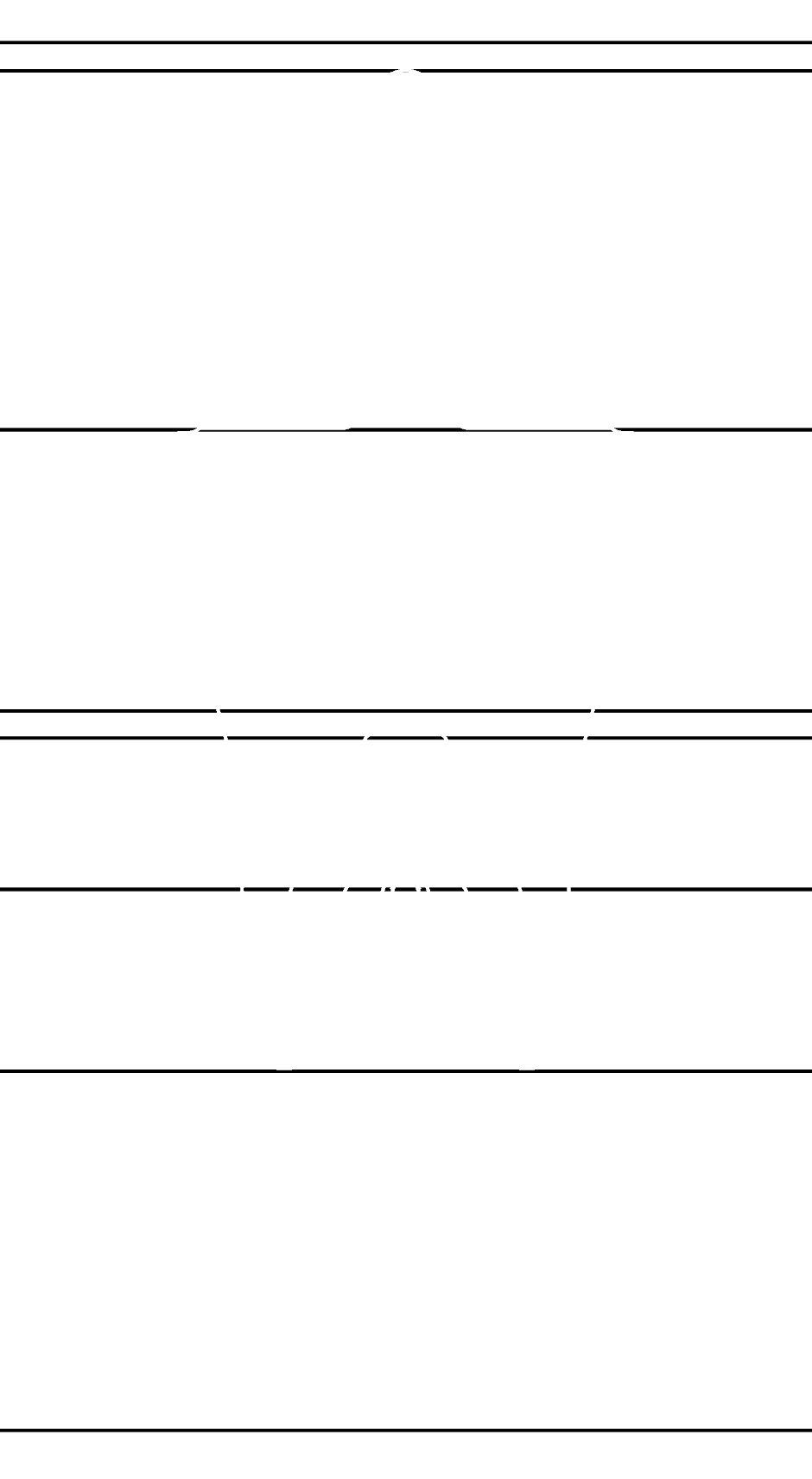

The PRESS-FIT INAR-RS and INAR-RS MATE combine IDC technology with the reliability of PRESS-FIT technology, eliminating the need for soldering magnet wires directly to printed circuit boards.
The IDC slot ensures a stable and durable connection to one or more magnet wires, without the need for prior stripping. The PRESS-FIT pin, automatically deforming during insertion into the PCB, guarantees a reliable and durable mechanical connection, without soldering. These technologies are further enhanced by high-quality materials and finishes, which ensure high mechanical, electrical, and corrosion resistance, even at high temperatures.
These terminals enable automated connection, making them ideal for automated electric motor production lines. Ideal for applications in sectors such as automotive and electric motors, where reliability is paramount, Inarca’s RS terminals offer secure, solderless connections.
The PRESS-FIT family grows stronger: new solutions for every connection challenge
Micro terminals
miniaturized high-performance connections
The new MICRO terminal series is Inarca’s response to the miniaturization needs in the electronics sector. These connectors have been developed with a precise objective: to offer reliable and high-performance connection solutions even in applications with extremely limited space. Despite their compact size, MICRO terminals maintain the same excellent characteristics that distinguish other Inarca IDC PRESS-FIT families.
MICRO terminals represent a further demonstration of Inarca’s commitment to offering innovative and cutting-edge solutions for the most diverse connection needs. With this new series, Inarca is able to support customers even in the most miniaturized applications, without compromising the quality and reliability of the connections.
Heavy Duty Terminals
the Inarca solution for high-power applications

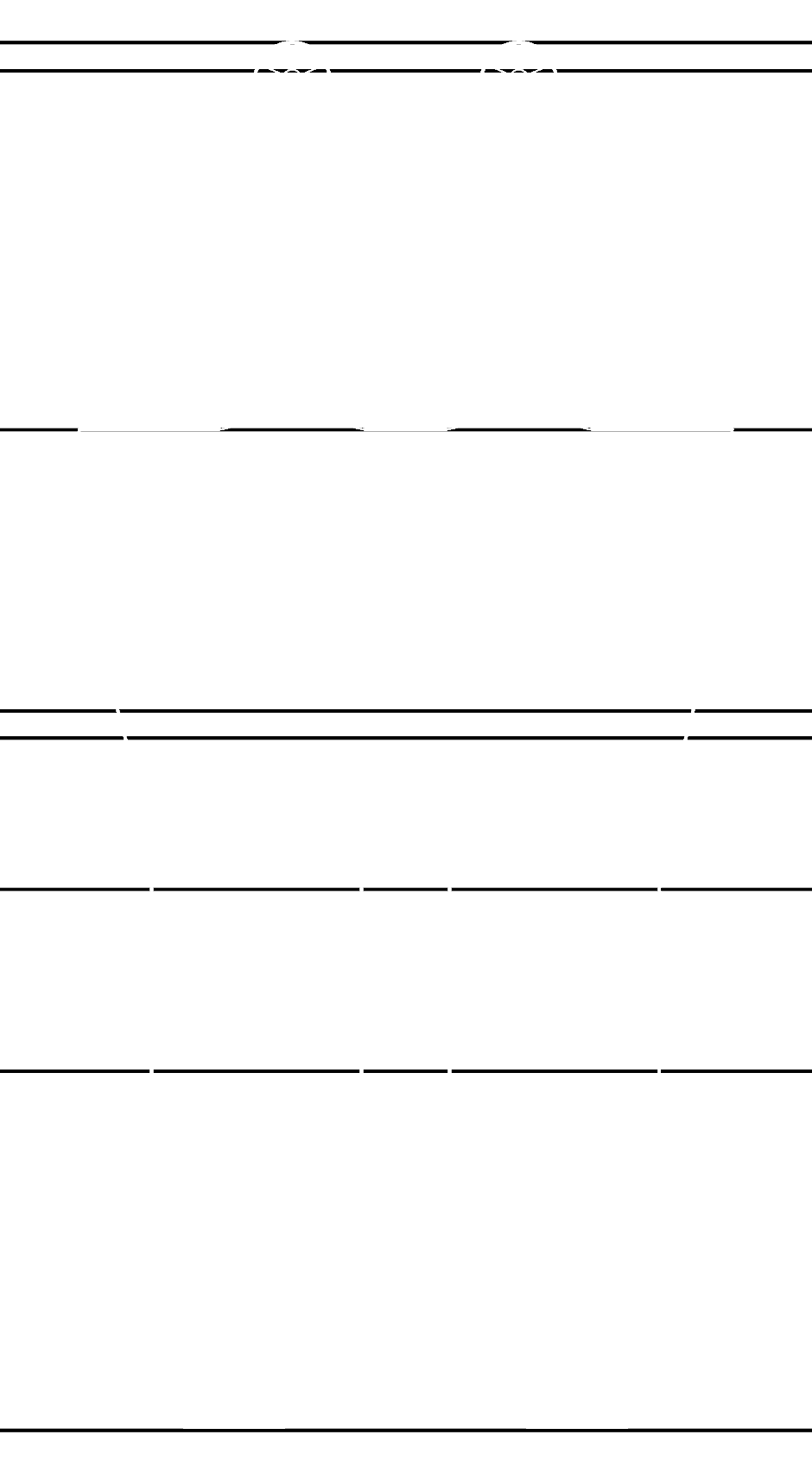

The HEAVY DUTY terminal series, designed to meet the most demanding connection needs, it’s a new addition to the Inarca family. This range of terminals is specifically designed to connect PCB to magnet wires with a diameter ranging from 1.45 mm to 2.59 mm. Like all products in our PRESS-FIT lines, HEAVY DUTY terminals also feature a slot for connection with magnet wires based on IDC technology. The peculiarity of these terminals lies in their connection to the PCB: instead of a single press-fit pin, they are equipped with two press-fit pins. This double connection, combined with a thickness of 0.8 mm, ensures greater current carrying capacity, allowing the passage of higher amperages. This characteristic also translates into a reduction in temperature on the electronic board, improving the reliability and durability of the components. Their curated design and the use of high-quality materials guarantee excellent performance.
Inarca PRESS FIT terminals: reliable, vibration-resistant connectivity for electric motors, automotive, and more.
Inserting Inarca magnet wire terminals into the wire-terminating cavities requires specialized equipment. Inarca provides a complete selection of insertion tools designed to accommodate your specific needs and different processing quantities.

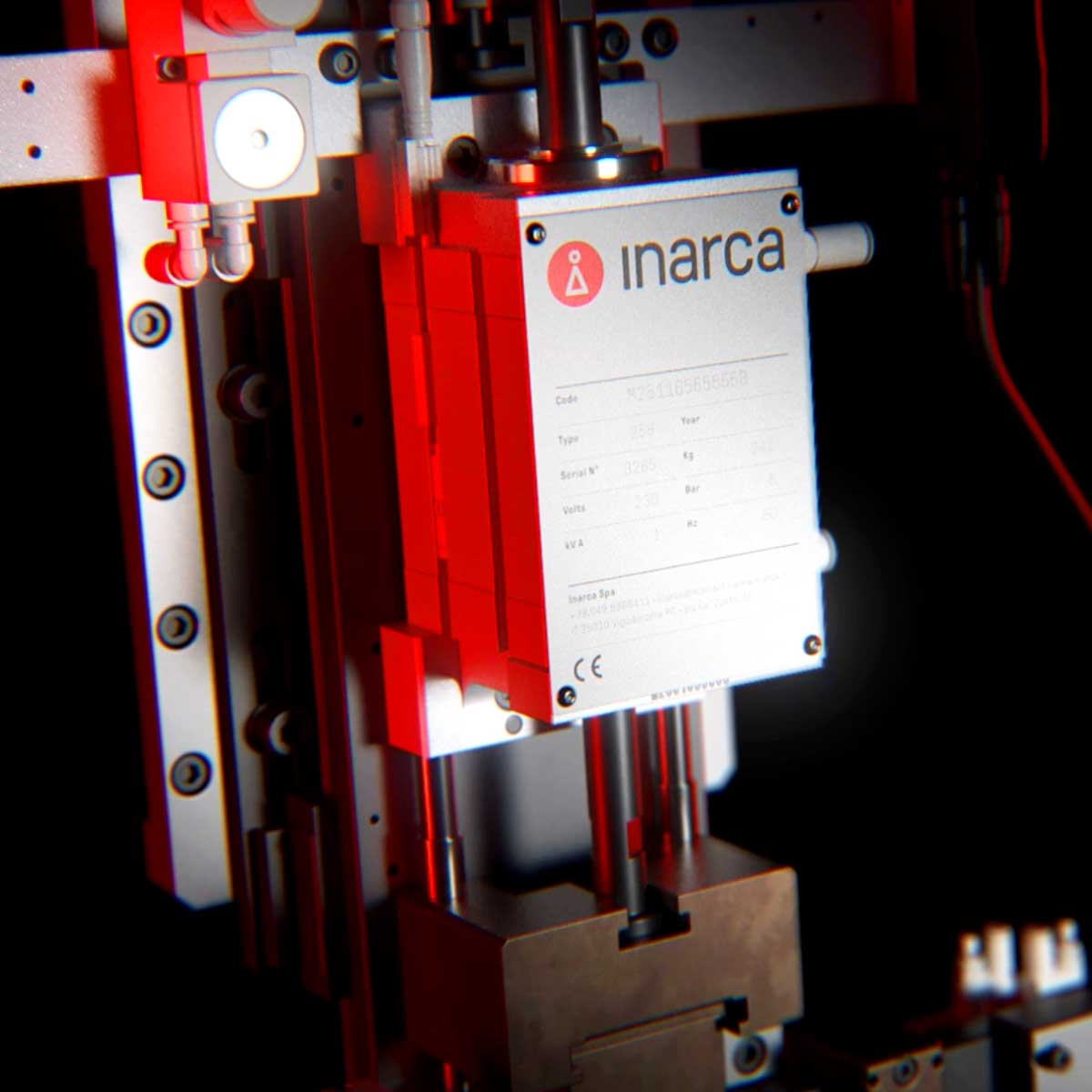

When it comes to preparing prototypes, pre-series, or managing small production runs, Inarca’s manual presses, like the M25-5RZ and M25-15VR, are the perfect tools. To streamline the process, the M25 insertion units offer automation and are designed for straightforward integration into semi-automatic/automatic machines and production lines. Moreover, Inarca’s M25 series features a broad spectrum of semi-automatic machines. Thanks to Inarca’s flexible and customer-driven design, these machines can be precisely tailored to match the specific application needs and production performance goals of any project.
